Pressure:
Max working 160 bar (2300 psi) (acc. to NFPA T 3.10.5.1)
Burst 480 bar (6900 psi) (acc. to NFPA T 3.10.5.1)

Connection ports:
1/2”÷1 1/2” BSP (other thread options on request)

Materials:
Head: cast iron
Bowl: aluminium alloy
Seal: Buna-N (FKM on request)

Differential collapse pressure:
No by-pass or 6 bar (90 psi) setting

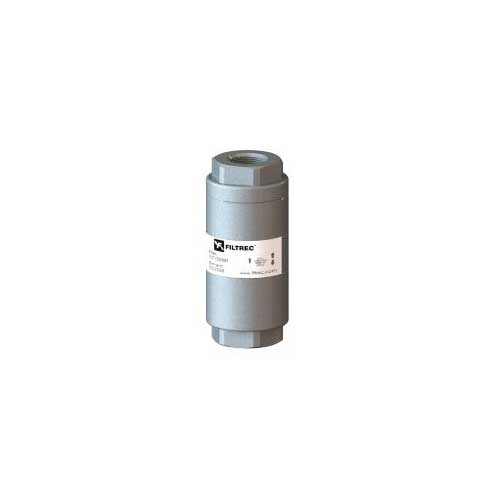

Pressure:
max operating 350 bar

Connection ports:
G 1/4” – G 3/8” – G 1/2”

Materials:
Housing: Aluminium alloy
Seals: NBR

Differential collapse pressure:
80 bar

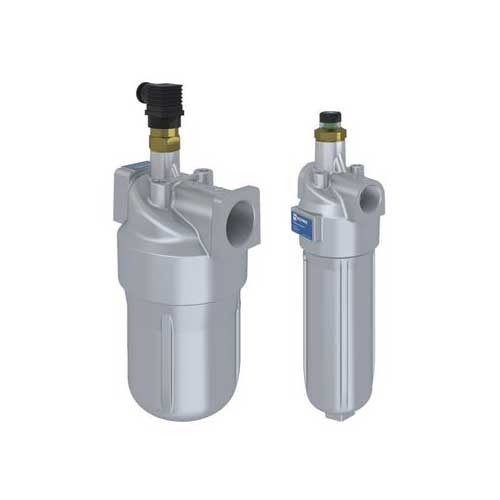

Pressure:
Max working 110 bar (1600 psi) (acc. to NFPA T 3.10.5.1)
Burst 330 bar (4800 psi) (acc. to NFPA T 3.10.5.1)

Connection ports:
1/2” BSP (other thread options on request)

Materials:
Head: anodized aluminium alloy
Bowl: anodized aluminium alloy
Seal: Buna-N (FKM on request)

Differential collapse pressure:
No by-pass or 6 bar (90 psi) setting

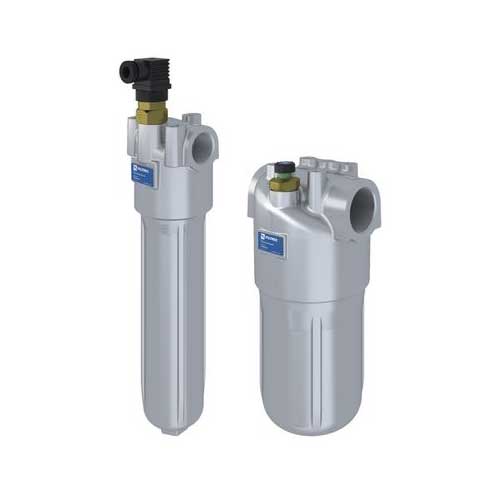

Pressure:
Max working (acc. to NFPA T 3.10.5.1):
F100-XD040/063/100: 100 bar (1500 psi)
F100-XD160/250/400: 80 bar (1200 psi)
Burst (acc. to NFPA T 3.10.5.1):
F100-XD040/063/100: 300 bar (4300 psi)
F100-XD160/250/400: 200 bar (3000 psi)

Connection ports:
1/2”÷1 1/2” BSP (other thread options on request)

Materials:
Head: aluminium alloy
Bowl: aluminium alloy
Seal: NBR (FKM on request)

Differential collapse pressure:
No by-pass or 6 bar (90 psi)

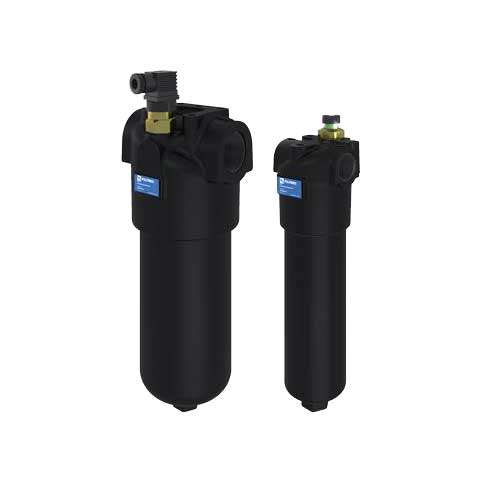

Pressure:
Max operating:
F280 D12x port size G 1/2” & 3/4”: 420 bar
F280 D12x port size G 1”: 320 bar
F280 D14x: 280 bar
Connection ports:
G 1/2”÷1 1/2”
Materials:
Head: cast iron
Bowl: extruded steel
Seal: NBR (FKM on request)
Differential collapse pressure:
No by-pass or 6 bar setting

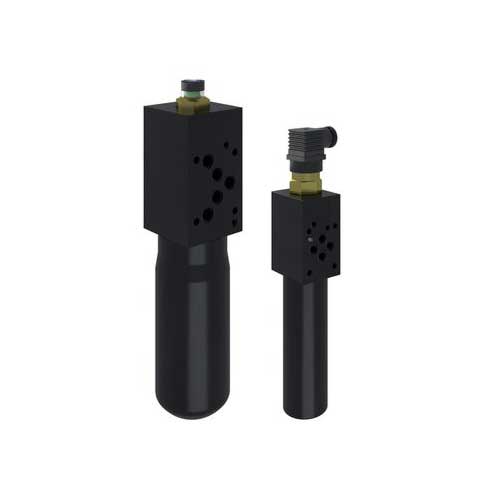

Pressure:
Max working 315 bar (4600 psi) (acc. to NFPA T 3.10.5.1)
Burst 945 bar (13700 psi) (acc. to NFPA T 3.10.5.1)

Connection ports:
CETOP 03 – CETOP 05

Materials:
Head: steel
Bowl: steel
Seal: Buna-N (FKM on request)

Differential collapse pressure:
No by-pass

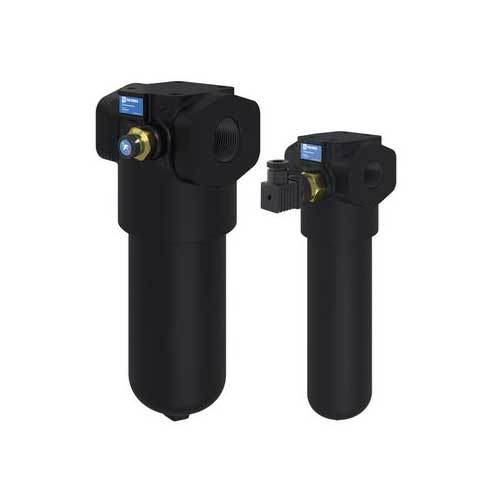

Pressure:
Max working 420 bar (6000 psi) (acc. to NFPA T 3.10.5.1)
Burst 1260 bar (18300 psi) (acc. to NFPA T 3.10.5.1)
Connection ports:
1/2”÷1 1/2” BSP (other thread options on request)
3/4”÷1 1/2” SAE J518-6000
Materials:
Head: cast iron
Bowl: extruded steel
Seal: Buna-N (FKM on request)
By-pass:
No by-pass or 6 bar (90 psi) setting

Pressure:
Max working: 12 bar (175 psi) (acc. to NFPA T 3.10.17)
Burst: 20 bar (290 psi) (acc. to NFPA T 3.10.17)

Connection ports:
3/4”÷1 1/2” BSP (other thread options on request)

Materials:
Head: aluminium alloy
Bowl: steel
Seal: Buna-N

By-pass:
Suction line: 0,25 bar (3.6 psi) setting
Return line: 1,7 bar (24.6 psi) setting

Pressure:
Max working (acc. to NFPA T 3.10.17):
FA-4-1x: 34,5 bar (500 psi)
FA-4-21: 24 bar (348 psi)
Burst (acc. to NFPA T 3.10.17):
FA-4-1x: 69 bar (1000 psi)
FA-4-21: 55 bar (798 psi)
Fatigue Test (acc. to NFPA T 3.10.17):
FA-4-1x: 0 / 34,5 bar (0 / 500 psi)
FA-4-21: 0 / 24 bar (0 / 348 psi)
Connection ports:
3/4”÷1 1/4” BSP (other thread options on request)
Materials:
Head: aluminium alloy
Bowl: carbon steel + aluminium alloy
Seal: NBR (FKM on request)
By-pass:
3,5 bar (50 psi)

Pressure:
Max working 8 bar
Burst 16 bar

Connection ports:
G 3/8”÷ G 2”

Materials:
Cover: aluminium alloy
Head: aluminium alloy
Bowl: PA6 reinforced (size 10 to 43) – zinc plated steel (size 50 to 64)
Seal: NBR (FKM on request)

By-pass:
Inbuilt in the filter element
B version 1,7 bar
C version 3 bar

Pressure:
Max working 12 bar (175 psi) (acc. to NFPA T 3.10.17)
Burst 20 bar (290 psi) (acc. to NFPA T 3.10.17)
Connection ports:
3/4”÷1 1/2” BSP
Materials:
Head: aluminium alloy
Bowl: steel
Seal: Buna-N
By-pass:
1,7 bar (24.6 psi) setting
N.B. Cartridge with integrated bypass valve and antidrainback membrane

Pressure:
Max operating 10 bar
Burst 20 bar

Connection ports:
Main ports: G ¾” to G 1 ¼”
Additional ports (optional): G ½” and G 1”

Materials:
Head: aluminium alloy
Bowl and top cover: nylon
Seals: Buna-N

By-pass:
Inbuilt in the filter element
B version 1,7 bar
C version 3 bar

Pressure:
Max working 8 bar (116 psi) (acc. to NFPA T 3.10.5.1)
Burst 16 bar (232 psi) (acc. to NFPA T 3.10.5.1)

Connection ports:
1/2”÷2” BSP (other thread options on request)

Materials:
Head and top cover: aluminium alloy
Top cover (sizes 10 to 14 only): nylon
Insert holder: aluminium alloy
Diffuser: zinc plated steel
Seal: Buna-N (FKM on request)

By-pass:
1,7 bar (24.6 psi)

Materials:
insert holder: aluminium alloy
diffuser: aluminium + phosphatized steel
seal: Buna-N (FKM on request)

By-pass:
1,7 bar (24.6 psi)

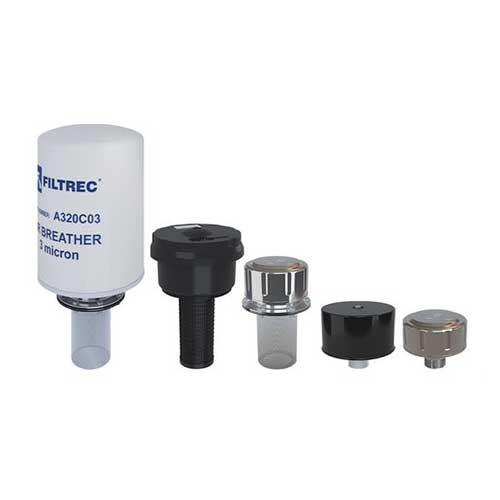

The air breather filters are integral part of the filtration within the hydraulic
system, as they retain the environment contamination that could enter into the reservoir with the air sucked due to the oil level fluctuations during the system operation.
Our wide range of air filter and filler breathers offers the suitable solution to
various requirements.

Connection ports:
1” – 1 1/4” – 1 1/2”BSP (other thread options on request)
1 1/2” SAE J518 – 3000/M12

Materials:
Cover: polyammide
Housing: aluminium alloy
Seal: Buna-N

By-pass:
No by-pass or 0,3 bar setting (4,35 psi)

The air breather filters are integral part of the filtration within the hydraulic
system, as they retain the environment contamination that could enter into the reservoir with the air sucked due to the oil level fluctuations during the system operation.
Our wide range of air filter and filler breathers offers the suitable solution to
various requirements.

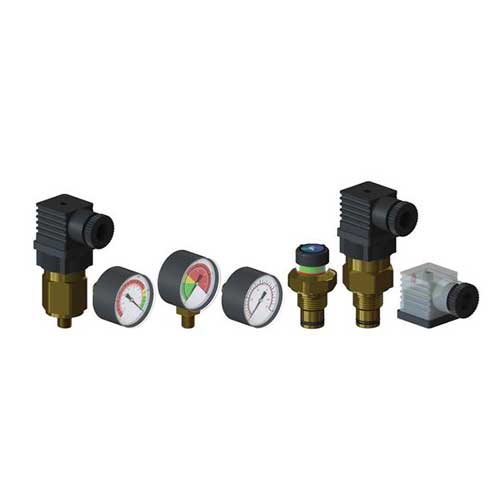

The clogging indicator registers the pressure downstream the filter element:
in the VISUAL indicator the red area shows the need for element replacement.
in the ELECTRIC indicator an electrical switch is activated.
